Electronics Mechanic Communication Electronics Page-3 Question Bank

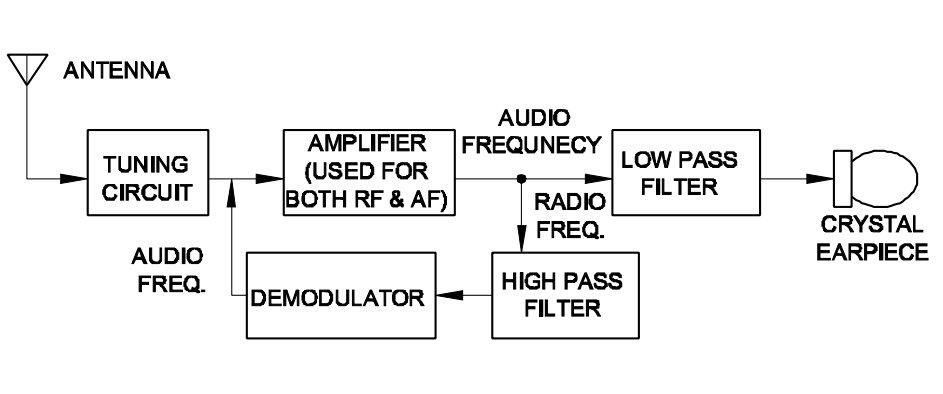

11.  What is the name of radio receiver?
रेडियो रिसीवर का नाम क्या है?

(A) FM receiver
 एफएम रिसीवर
(B) TRF receiver
 TRF रिसीवर
(C) Reflectional receiver
 रेफ्लेक्शनल रिसीवर
(D) Superheterodyne receiver
 सुपरहेट्रोडाइन रिसीवर

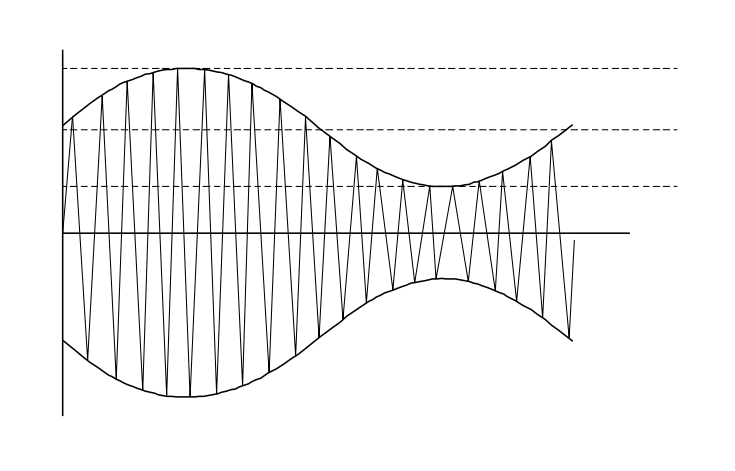

12.  What is the modulation index of the Amplitude modulated waveform as shown in the figure?
जैसा कि चित्र में दिखाया गया है, आयाम संग्राहक तरंगरूप का मॉडुलन सूचकांक क्या है?

(A) 0.5
(B) 5
(C) 10
(D) 50

13.  What is the function of capacitor (C) in the envelope detector circuit?
एनवेलप डिटेक्टर सर्किट में संधारित्र (C) का कार्य क्या है?

(A) Detects the signal
 संकेत का पता लगाता है
(B) Stores the signal
 संकेत संग्रहीत करता है
(C) Opposes the signal
 संकेत का विरोध करता है
(D) Grounds the signal
 मैदान संकेत

14.  Which circuit is used to process the demodulation of Amplitude modulated signal?
एम्प्लिट्यूड मॉड्यूलेट सिग्नल के डिमोड्यूलेशन को संसाधति करने के लिए किस सर्किट का उपयोग किया जाता है?

(A) Ratio detector
 रेशो डिटेक्टर
(B) Slope detector
 स्लोप डिटेक्टर
(C) Envelope detector
 एनवेलप डिटेक्टर
(D) Quadrature detector
 द्विघात/Quadrature डिटेक्टर

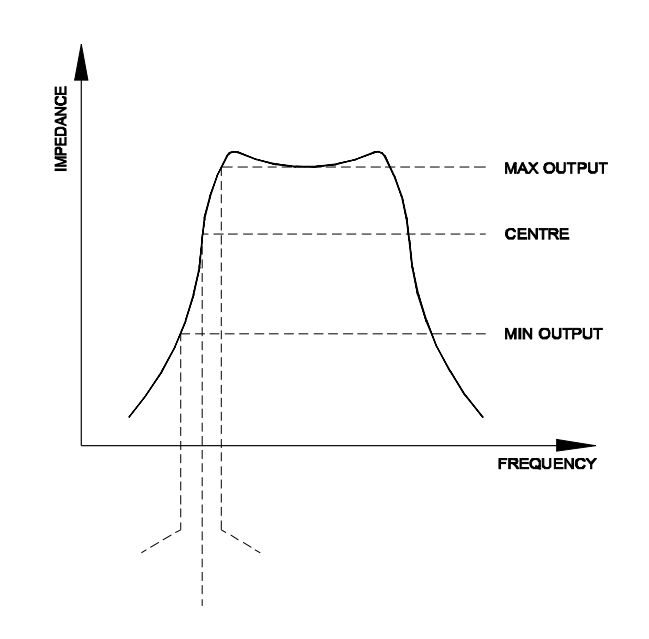

15.  Which type of FM detector concept produces the frequency response characteristics curve as shown in the figure?
किस प्रकार का FM डिटेक्टर संकल्पना चित्र में दर्शाए अनुसार आवृत्ति प्रतिक्रिया विशेषता वक्र उत्पन्न करता है?

(A) Ratio detector
 अनुपात डिटेक्टर
(B) Foster-seeley FM detector
 फोस्टर-Seeley एफएम डिटेक्टर
(C) FM slope detector
 एफएम स्लोप डिटेक्टर
(D) Quadrature FM detector
 द्विघात/Quadrature FM डिटेक्टर
