Electronics Mechanic MOSFET IGBT Page-3 Question Bank

11.  What is the maximum blocking voltage of very high current handling IGBT modules?
IGBT मॉड्यूल को नियंत्रित करने वाले उच्च वर्तमान वोल्टेज का अधिकतम अवरोधक वोल्टेज क्या है?

(A) 440 V
(B) 1000 V
(C) 5000 V
(D) 6000 V

12.  What is the input impedance of IGBT?
IGBT के इनपुट इम्पिडेंस क्या है?

(A) Low input impedance
 कम इनपुट इम्पिडेंस
(B) High input impedance
 उच्च इनपुट इम्पिडेंस
(C) Medium input impedance
 मध्यम इनपुट इम्पिडेंस
(D) Infinity input impedance
 इनफिनिटी इनपुट इम्पिडेंस

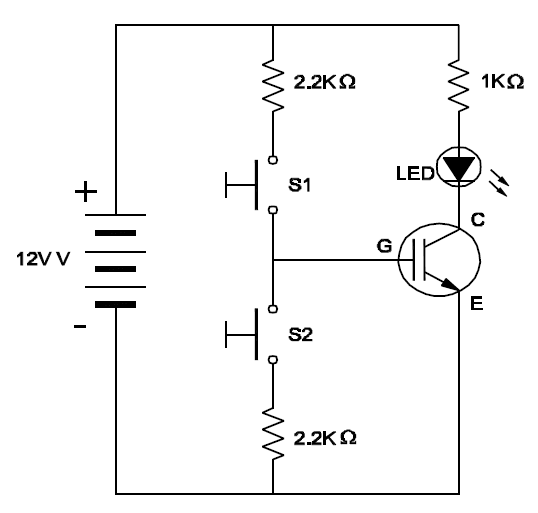

13.  What is the use of the test circuit shown in the figure?
चित्र में दिखाए गए टेस्ट सर्किट का उपयोग क्या है?

(A) To test the working condition of FET
 FET की वर्किंग कंडीशन का टेस्ट करने के लिए
(B) To test the working condition of UJT
 UJT की वर्किंग कंडीशन का टेस्ट करने के लिए
(C) To test the working condition of IGBT
 IGBT की वर्किंग कंडीशन का टेस्ट करने के लिए
(D) To test the working condition of LDR
 LDR वर्किंग कंडीशन का टेस्ट करने के लिए

14.  What is the advantage of MOSFET?
MOSFET का क्या फायदा है?

(A) Fast switching speed
 तेज गति से स्वीचिंग
(B) Slow switching speed
 धीमी गति से स्वीचिंग
(C) Higher power gate signal
 उच्च शक्ति गेट संकेत
(D) Low thermal ionisation of electron-holes
 इलेक्ट्रोन-छिद्रों का निम्न तापीय आयनीकरण

15.  What is the advantage of MOSFET?
MOSFET का क्या फायदा है?

(A) Superior current conduction capability
 बेहतर वर्तमान चालन क्षमता
(B) Low gate signal power requirements
 लो गेट सिग्नल पॉवर आवश्यकता
(C) Very low on-state voltage
 बहुतकम ऑन-स्टेट वोल्टेज
(D) Low driving power
 लो ड़ाइविंग पॉवर
