Electrician basic wiring practice Page-14 Question Bank

66.  Which type of lamp holder is used for the lamps above 300 watts?
300 वाट से ऊपर के लैंप के लिए किस प्रकार के लैंप धारक का उपयोग किया जाता है?  [Bharat Skill QB]

(A) Edison screw holder
 एडिसन स्क्रू होल्डर
(B) Goliath screw holder
 गोलियथ पेंच होल्डर
(C) Angle holder
 कोण होल्डर
(D) Brachet holder
 पूरक होल्डर

67.  What is the expansion of AWG?
AWG का विस्तार क्या है?  [Bharat Skill QB]

(A) American Wire Gauge
(B) American Wire Grade
(C) American Wire Group
(D) American Wire Guard

68.  What is the name of BIS symbol?
BIS प्रतीक का नाम क्या है?  [Bharat Skill QB]

(A) Lamp
 लैंप
(B) Two way switch
 टू वे स्विच
(C) Intermediate switch
 इंटरमीडिएट स्विच
(D) Multi - position switch
 बहुस्थिति स्विच

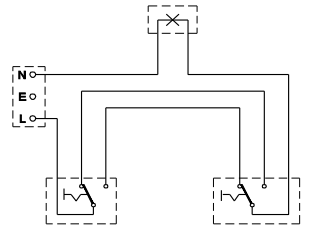

69.  What is the type of diagram as shown in the figure?
चित्र में दर्शाए गए आरेख का प्रकार क्या है?  [Bharat Skill QB]

(A) Wiring diagram
 वायरिंग आरेख
(B) Circuit diagram
 परिपथ आरेख
(C) Installation plan
 स्थापना योजना
(D) Layout diagram
 लेआउट आरेख

70.  What is the minimum cross- sectional area of copper conductor for flexible cord as per BIS?
BIS के अनुसार नम्य कॉर्ड के लिए कॉपर कंडक्टर का न्यूनतम क्रॉस-सेक्शनल क्षेत्र क्या है?  [NCVT Exam 23]

(A) 0.5 mm2
(B) 1 mm2
(C) 1.5 mm2
(D) 2.5 mm2
