Electrician basic wiring practice Page-9 Question Bank

41.  What is the purpose of the circuit diagram in wiring installation?
वायरिंग इंस्टॉलेशन में परिपथ आरेख का उद्देश्य क्या है?  [Bharat Skill QB]

(A) To show the physical position of accessories
 सामग्री की भौतिक स्थिति दिखाने के लिए
(B) To estimate the various accessories in the circuit
 सर्किट में विभिन्न सामग्री का अनुमान लगाने के लिए
(C) To inform the reader quickly what for the circuit is designed
 पाठक को जल्दी से सूचित करने के लिए कि सर्किट किस लिए डिज़ाइन किया गया है
(D) To show the schematic connection of the circuit for a specific task
 किसी विशिष्ट कार्य के लिए सर्किट का योजनाबद कनेक्शन दिखाने के लिए

42.  Which electrical equipment can be connected with "L" series MCB?
कौन से विद्युत उपकरण को "L" सीरीज MCB से जोड़ा जा सकता है?  [Bharat Skill QB]

(A) General lighting
 जनरल लाईटिंग
(B) Motors
 मोटर
(C) Air conditioner
 वातानुकूल
(D) Halogen lamp
 हैलोजन लैंप

43.  Why the looping-back (loop in) method is preferred in domestic wiring installation?
घरेलू वायरिंग इंस्टॉलेशन में लूपिंग-बैक (लूप इन) विधि क्यों पसंद की जाती है?  [Bharat Skill QB]

(A) Easy to identify the faults
 दोषों की पहचान करना आसान है
(B) No separate joints are used
 कोई अलग से जोड़ों का उपयोग नहीं किया जाता है
(C) More number of tappings can be taken
 अधिक संख्या में टेपिंग की जा सकती है
(D) More number of sub- circuits can be made
 अधिक संख्या में उप- सर्किट बनाए जा सकते हैं

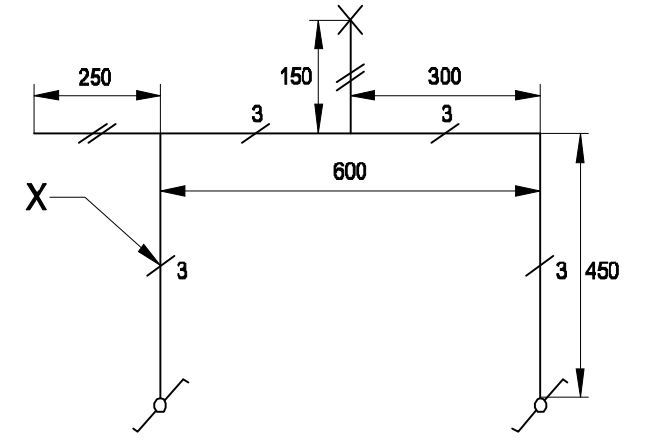

44.  What does the symbol marked ʹXʹ indicate as shown in the figure?
चित्र में दिखाए अनुसार ʹXʹ चिन्ह क्या दर्शाता है?  [Bharat Skill QB]

(A) Number of wires run on the limb
 लिंब पर तारों की संख्या
(B) Number of switches to be connected
 कनेक्ट होने के लिए स्विच की संख्या
(C) Number of battern (or) pipe to be fixed
 बैटन (या) पाइप की संख्या तय करना
(D) Number of clamps (or) clips to be fixed
 क्लैंप (या) क्लिप की संख्या तय करना

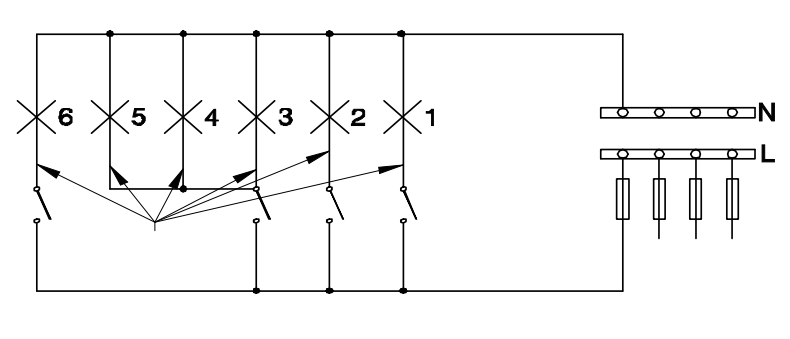

45.  What is the name of wiring method?
वायरिंग विधि का क्या नाम है?  [Bharat Skill QB]

(A) Joint box method
 संयुक्त बॉक्स विधि
(B) Looping back method
 लूपिंग बैक विधि
(C) Loop in method using 3 plate ceiling rose
 3 प्लेट सीलिंग रोज़ का उपयोग करके लूप इन विधि
(D) Loop in method using 2 plate ceiling rose
 2 प्लेट सीलिंग रोज़ का उपयोग करके लूप इन विधि
