Electronics Mechanic Digital Electronics Page-2 Question Bank

6.  What is the decimal conversion number for the octal number (2374)8?
ऑक्टल नंबर के (2374)8 लिए डेसीमल नंबर संख्या क्या है?

(A) (1266)10
(B) (1276)10
(C) (1286)10
(D) (1296)10

7.  What is the digital signal value for the analog signal value 6V?
एनालॉग सिग्नल मान 6V के लिए डिजिटल सिग्नल मूल्य क्या है?

(A) 0100
(B) 0101
(C) 0110
(D) 0111

8.  What is the decimal number for the binary number 0101?
बाइनरी नंबर 0101 के लिए डेसीमल नंबर क्या है?

(A) 4
(B) 5
(C) 6
(D) 7

9.  Which IC is used for (DEMUX) function in data transmission?
डेटा ट्रांसमिशन मे (DEMUX) फ़ंक्शन के लिए किस IC का प्रयोग किया जाता है?

(A) IC 7483
(B) IC 7486
(C) 74 LS 138
(D) 74 LS 151

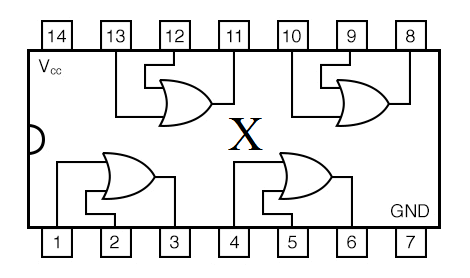

10.  Which logic gate IC is marked as "X" in the circuit?
सर्किट मे किस लॉजिक गेट IC को "X" के रूप मे चिह्नित किया गया है?

(A) IC7404
(B) IC7408
(C) IC7486
(D) IC7432
