Electronics Mechanic SMPS and Inverter Page-3 Question Bank

11.  What is the working voltage range of input AC supply specified for SMPS?
SMPS के लिए निर्दिष्ट इनपुट AC आपूर्ति की कार्यशील वोल्टेज सीमा क्या है?

(A) 110 VAC to 150 VAC
 110 VAC से 150 VAC
(B) 170 VAC to 240 VAC
 170 VAC से 240 VAC
(C) 90 VAC to 270 VAC
 90 VAC से 270 VAC
(D) 220 VAC to 440 VAC
 220 VAC से 440 VAC

12.  What is the full form of CVT?
CVT का फुल फॉर्म क्या है?

(A) Complex Virtual Technology
(B) Constant Voltage Transformer
(C) Composite Video Transmission
(D) Complementary Voltage Terminal

13.  Which type of transformer is used in the DC to AC converter?
DC से AC कन्वर्टर में किस प्रकार के ट्रांसफार्मर का उपयोग किया जाता है?

(A) Auto transformer
 ऑटो ट्रांसफॉर्मर
(B) Step up transformer
 स्टेप अप ट्रांसफॉर्मर
(C) Isolation transformer
 आइसोलेशन ट्रांसफार्मर
(D) Step down transformer
 स्टेप डाउन ट्रांसफॉर्मर

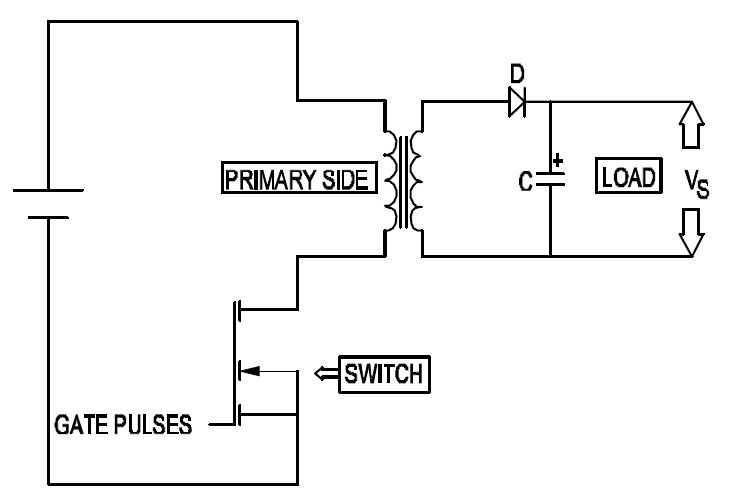

14.  What is the type of converter?
कनवर्टर का प्रकार क्या है?

(A) Fly back converter
 फ्लाई बैक कनवर्टर
(B) DC to AC converter
 DC टु AC कनवर्टर
(C) AC to DC converter
 AC टु DC कनवर्टर
(D) Forward type converter
 फॉरवर्ड टाइप कनवर्टर

15.  What is the frequency range of switching circuit in SMPS?
SMPS में स्वीचिंग सर्किट की आवृत्ति रेंज क्या है?

(A) 10 Hz to 15 KHz
(B) 15 KHz to 1 MHz
(C) 1 MHz to 3 MHz
(D) 3 MHz to 30 MHz
