Electronics Mechanic SMPS and Inverter Page-6 Question Bank

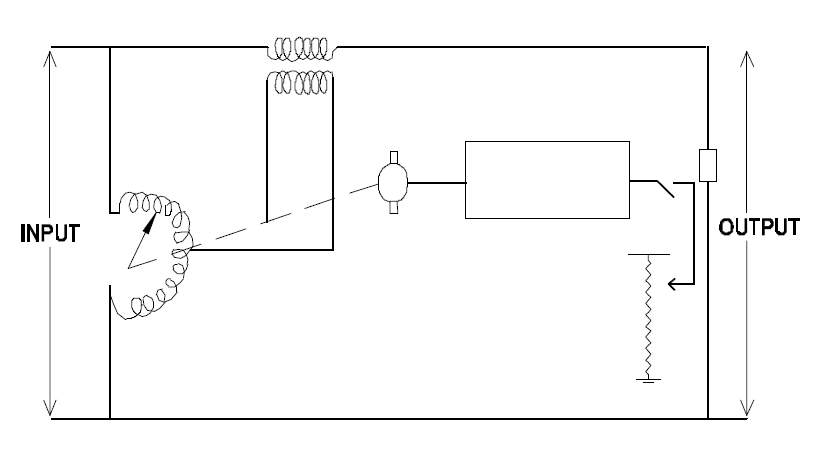

26.  What is the function of the circuit?
सर्किट का कार्य क्या है?

(A) Sine wave inverter
 साइन वेव इन्वर्टर
(B) Servo voltage stabilizer
 सर्वो वोल्टेज स्टेबलाइजर
(C) Grid tied charge system
 ग्रिड टाईड चार्ज सिस्टम
(D) Switched mode power supply
 स्विच्ड मोड पावर सप्लाई

27.  Which type of connector is used to supply power from SMPS to the computer motherboard?
SMPS से कंप्यूटर मदर बोर्ड को बिजली की आपूर्ति करने के लिए किस प्रकार के कनेक्टर का उपयोग किया जाता है?

(A) SATA connector
 SATA कनेक्टर
(B) Peripheral connector
 पेरीफेरल कनेक्टर
(C) 20/24 Molex connector
 20/24 मोलेक्स कनेक्टर
(D) PCI express connector
 PCI एक्सप्रेस कनेक्टर

28.  Which circuit is used in SMPS for voltage regulation?
वोल्टेज विनियमन के लिए SMPS में किस सर्किट का उपयोग किया जाता है?

(A) Clipping
 क्लिपिंग
(B) Clamping
 क्लैंपिंग
(C) Switching
 स्वीचिंग
(D) Amplification
 एम्पलीफिकेशन

29.  What is the switching frequency of SMPS used in computer?
कंप्यूटर में प्रयुक्त SMPS की स्वीचिंग आवृत्ति क्या है?

(A) 5 KHz
(B) 10 KHz
(C) 15 KHz
(D) 20 KHz

30.  What is the resultant output voltage of the circuit?
सर्किट का परिणामी आउटपुट वोल्टेज क्या है?

(A) Inverted output
 उलटा आउटपुट
(B) Regulated output
 विनियमित आउटपुट
(C) Adjustable output
 समायोज्य आउटपुट
(D) Unregulated output
 अनियमित उत्पादन
